• Axle, 3.87 final drive ratio (AWD only.)
• GVWR, 4630 lbs. (2100 kg) (AWD only.)
• Fuel, gasoline, E15
• Driver Shift Controls
• All-wheel drive (Included and only available with AWD models.)
• Suspension, front MacPherson strut
• Suspension, rear 4-link
• Brakes, 4-wheel antilock, 4-wheel disc 16" front and rear
• Brake, electronic parking
• Brake lining, high-performance, noise and dust performance
• Exhaust, single outlet
• Mechanical jack with tools

• Wheels, 17" (43.2 cm) aluminum
• Tires, P225/65R17 all-season blackwall (AWD only.)
• Wheel, spare, 16" (40.6 cm) steel
• Tire, compact spare, T135/70R16 blackwall
• Trim, Black lower window
• Active Aero Shutters
• Headlamps, halogen composite
• Headlamp control, automatic on and off with automatic delay
• Headlamp control, IntelliBeam auto high beam
• Glass, acoustic, laminated windshield
• Glass, solar absorbing, light
• Mirror caps, Black
• Mirrors, outside heated power-adjustable, manual-folding
• Liftgate, rear manual
• Door handles, body-color

• Audio system, Chevrolet Infotainment 3 system, 7" diagonal color touchscreen, AM/FM stereo. Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices, voice command pass-through to phone, Apple CarPlay and Android Auto capable.
• Audio system feature, 6-speaker system
• Noise control system, active noise cancellation
• SiriusXM Radio delete
• Antenna, roof-mounted (Black.)
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system (Go to my.chevrolet.com/learn to find out which phones are compatible with the vehicle.)
• 4G LTE Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)

• Seats, front bucket
• Seat trim, Premium Cloth
• Seat adjuster, driver 4-way manual, fore/aft, up/down
• Seat adjuster, front passenger 4-way manual
• Seat, rear split-folding with center armrest
• Head restraints, 2-way adjustable (up/down), front
• Floor mats, carpeted front
• Floor mats, carpeted rear
• Steering wheel, 3-spoke, deluxe
• Steering column, tilt and telescoping
• Steering wheel controls, audio, phone interface and driver information center controls
• Speedometer, miles/kilometers
• Display, driver instrument information enhanced, monochromatic
• Window, power with driver Express-Up and Down
• Window, power with front passenger Express-Down
• Windows, power, rear with Express-Down
• Door locks, power with lock-out protection
• Keyless Open includes extended range Remote Keyless Entry with lock and unlock feature
• Keyless Start, push-button
• Cruise control, electronic with set and resume speed
• Theft-deterrent system, unauthorized entry
• Remote panic alarm
• USB ports, 2, with auxiliary input jack, located in front center stack storage area
• USB charging-only ports, 2, located in the rear of the floor console
• Air conditioning, semi-automatic, single-zone
• Defogger, rear-window electric
• Power outlet, front auxiliary, 12-volt
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger illuminated vanity mirrors, covered
• Assist handle, driver
• Assist handle, front passenger
• Assist handles, rear outboard
• Map pocket, driver seatback
• Map pocket, front passenger seatback
• Shift lever, chrome-trimmed
• Power outlet, cargo area auxiliary, 12-volt
• Chevrolet Connected Access capable (Subject to terms. See onstar.com or dealer for details.)

• Automatic Emergency Braking
• StabiliTrak, stability control system with Traction Control
• Daytime Running Lamps, separate cavity, LED
• Airbags, dual-stage, frontal, driver and right front passenger with Passenger Sensing System, thorax side-impact, seat mounted, driver and right front passenger, roof-rail, side front and rear outboard seating positions (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and Chevrolet connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Rear Vision Camera
• Forward Collision Alert
• Following Distance Indicator
• Front Pedestrian Braking
• Lane Keep Assist with Lane Departure Warning
• Rear Seat Reminder
• Door locks, rear child security, manual
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitor, manual learn with Tire Fill Alert (Does not apply to spare tire.)
• Horn, dual-note

ENGINE, 1.5L TURBO DOHC 4-CYLINDER, SIDI, VVT

• (170 hp [127.0 kW] @ 5600 rpm
• 203 lb-ft of torque [275.0 N-m] @ 2000 - 4000 rpm) (STD)

• Vehicle
• EPA Classification: 4WD Sport Utility Vehicle
• Mileage
• Fuel Economy Est-Combined (MPG): 27
• EPA Fuel Economy Est - City (MPG): 25
• EPA Fuel Economy Est - Hwy (MPG): 30
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Base Curb Weight (lbs): 3465
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 1500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 150
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 1500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 150
• Suspension
• Suspension Type - Front: MacPherson Strut
• Suspension Type - Rear: Four-Link
• Suspension Type - Front (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.8 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 11.3 x - TBD -
• Tires
• Front Tire Order Code: 5CY
• Rear Tire Order Code: 5CY
• Spare Tire Order Code: RJA
• Front Tire Size: P225/65R17
• Rear Tire Size: P225/65R17
• Spare Tire Size: T135/70R16
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): 16 x -TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), Overall: - TBD -
• Lock to Lock Turns (Steering): - TBD -
• Turning Diameter - Curb to Curb (ft): 37.4
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 15.6
• Exterior Dimensions
• Wheelbase (in): 107.3
• Length, Overall (in): 183.1
• Width, Max w/o mirrors (in): 72.6
• Height, Overall (in): 65.4
• Track Width, Front (in): 62.2
• Track Width, Rear (in): 62.2
• Min Ground Clearance (in): 7.9
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 63.9
• Cargo Volume to Seat 2 (ft³): 29.9
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 103.5
• Front Head Room (in): 40
• Front Leg Room (in): 40.9
• Front Shoulder Room (in): 57.2
• Front Hip Room (in): 54.2
• Second Head Room (in): 38.5
• Second Leg Room (in): 39.9
• Second Shoulder Room (in): 55.5
• Second Hip Room (in): 51.7
• Summary

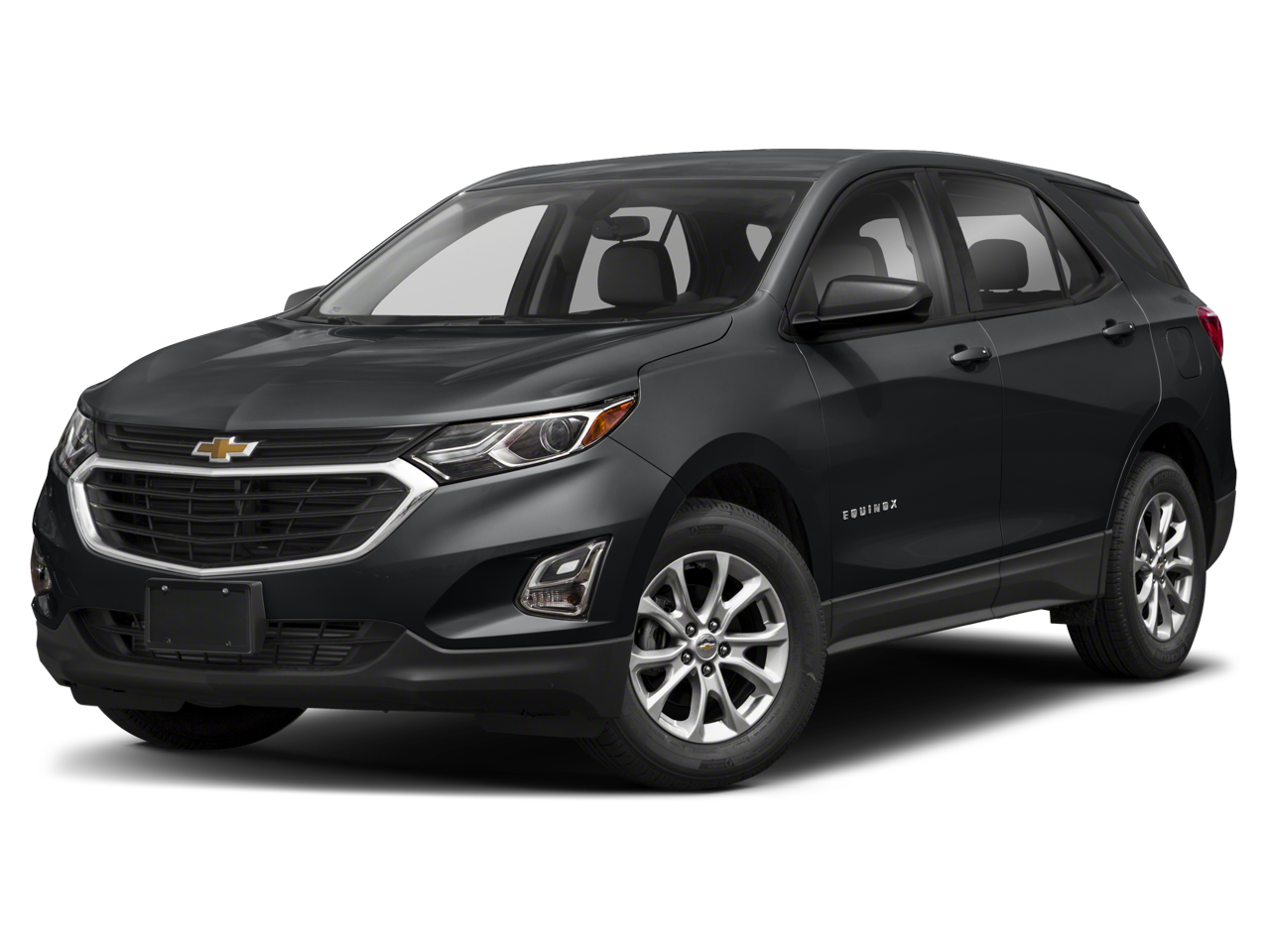

• Vehicle Name: Chevrolet Equinox
• Body Style: Sport Utility Vehicle
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 6.6
